Testbed EM

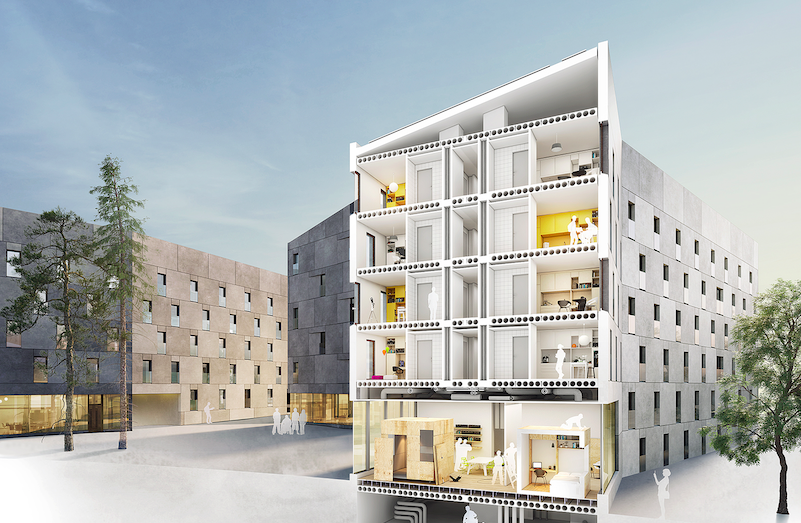

Testbed EM consists of 305 student apartments and is located at KTH Campus Valhallavägen. The testbed consists of three buildings with concrete exterior wall elements. The size of standard apartments is 19.5 sqm and all apartments have their own kitchen and shower room. The buildings have a shared laundry room and a post room.
About Testbed EM
The buildings are heated by preheated supply air. Hot water and heat are generated via heat pumps connected to 12 boreholes with a total length of 3600m, and several boreholes have fiberoptics installed for temperature measurement longitudinally.
The roof surfaces are covered by 1150 sqm of photovoltaic panels. There are a total of 50 sewage heat exchangers installed, both vertical and horizontal. Extract and supply air can be adjusted in all apartments. Hot water, electricity, CO2 and light are measured in all apartments. Regulation and control systems are possible to influence for research purposes. The buildings are plus energy buildings.

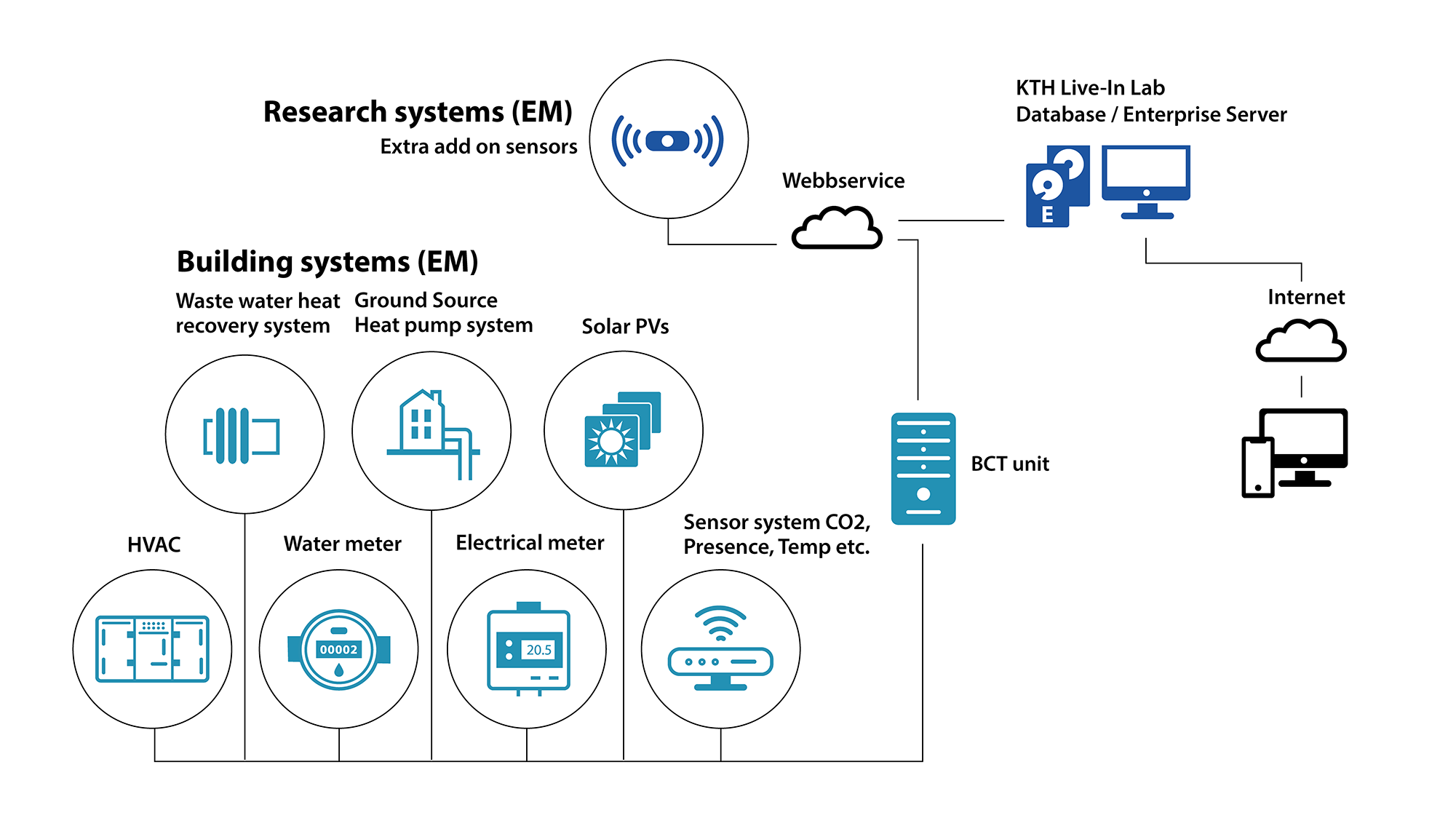

Systems overview testbed EM (Einar Mattson)
Sensors
Temperature
Presence
C02
Warm Water
UNITS
Pressure (Pa)
Temperature (°C)
CO2 (ppm)
Systems
Volume Airflow Tin, Tout
Electricity measurements
DHW - Domestic hot water
DHW - Domestic hot water Waste heat exchanger.
Solar Photovoltaic
Geothermal heating
Data
Data storage, security and availability
